Product Details:
Place of Origin: Guangzhou
Brand Name: FuninVR
Certification: CE/ISO9001/SGS
Model Number: ZY-5D-HA9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Bubble pack+stretch films+wood frame(wood box for choice)
Delivery Time: 20 days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, , MoneyGram
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Product Name: 5D Interactive Cinema Power: 8.0kw
Number Of Setas: 6-48Seats Service: 7*24Hrs Online Service
Weight: 420kg Long Warranty: 12 Months
Material: Sheet Metal Voltage: 220V
High Light:

simulator 7d cinema

,

7d simulator cinema

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater



Peru 3d 4d 5d 6d cinema theater movie system suppliers



Income of 6 seats
  Ticket price/per ticket Working time/per day Conversion mode Income
Every day $3 8 hours 6*3*8*60/15 $576
Every month $3 8 hours $576*30 $17280
Every year $3 8 hours $17280*12 $207360
Note: the ticket price and working time can be made out by yourself or your local market.



Income of 9 seats
  Ticket price/per ticket Working time/per day Conversion mode Income
Every day $3 8 hours 9*3*8*60/15 $864
Every month $3 8 hours $864*30 $25920
Every year $3 8 hours $25920*12 $311040
Note: the ticket price and working time can be made out by yourself or your local market.

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 0

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 1

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 2



Product Description

The invention of 6D cinema allowed us to be invloved in the world of virtual reality, and this technology is a perfect combination of 3D images and effects produced by the special equipements upon the human perceptive organs.



We could feel the effects such as wind blowing, rain spraying, snow flying,

lightning blinking, fog simulation, bubble flying , air blowing, leg sweep, seat vibration, back vibration, etc. At the same time, we would experience the exciting motion of the dynamic seats, which drive us being in a fantasy wonderful world.



For 6D cinema, it's base on 5D cinema with more effects.

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 3

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 4



We could choose 6 seats, 8 seats, 9 seats, 12 seats, 16 seats, 18 seats, 24 seats, 32 seats, 64 seats, and 72 seats for 6D cinema.



Configuration of 5d Cinema



5D Cinema
1--Control system Controlling films playing, seats moving, movement curve correction and all special effects
2--Seats system Motion seats with leg sweep, bottom and back vibration, 6 DOF controlling system, 72 directions, 36 groups and 72 movements
3--Stereo broadcasting system Professional cinema projection equipment, clear image, bright, good color reproduction characteristics and overelaborate
4--Screen system HG, wide viewing angle, professional stereo cinema metal projection screen, long serving life and anti-environment disturbance
5--Sound system High quality 5.1 channel surround sound system, forming a strong sense of space
6--Special effects system Motion seats can move up and down, vibration, leg sweep,air and water, other effects including bubble, smoke, snow, rain, lightning, and make people feel strong feelings of simulation
7--Auxiliary system Stereoscopic glasses, controlling system software, pipelines and so on

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 5





Special Effect

Rain Snow
Smoke / Fog Bubble
Lightning Wind
Fire Air blow
Water spray Leg sweep
Seat vibration Back Vibration



Latest Technology:



Platform feature of electric dynamic technology:

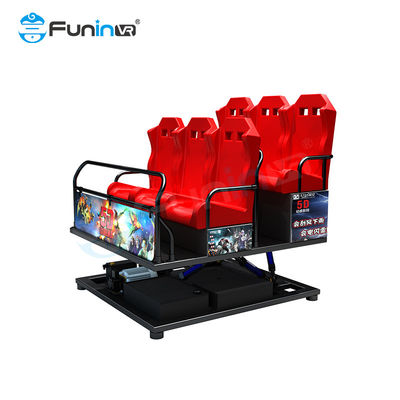

The electric platform consists of six strong eletric cylinders with six independent motors, and two parallel iron platforms. The motors control cylinders to move up and down, and then cylinders push the platform to move from different angles.



Project Forward Backward Range of speed
X axis move +183mm -183mm 26-261mm/s
Y axis move +90mm -300mm 26-278mm/s
Z axis move +370mm 0 25-256mm/s
X axis move +21° -21° 3-30 ° /s
Y axis move +22° -19° 3-29.3 °/s
Z axis move +16° -16° 2-22.8 °/s



Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 6

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 7



Platform feature of hydraulic dynamic technology:

The hydraulic platform consists of six hydraulic cylinders, one motor, one oil pump, one oil box, six solenoid valves, one cooling fan and two iron platforms. The control unit transmits signal to motor and solenoid valves, which drives the motor to work. So motor provides power for oil pump, and it prompts oil to run towards solenoid valves. When solenoid valves receives signal from control unit, it will open and close in time. So that oil can enter the oil tubes and provide pressure for hydraulic cylinders. At last, the movement of cylinders leads to platform's working.



Hydraulic base weight 300KG
Maximum load weight 2000KG
Voltage 220V / 380V
Power 3.75W
Moving coordinate 6 DOF
Seat size 1715*1400*550mm
Lifting magnitude 210-230mm
Environment Indoor
Ambient temperature degree 0-40
Ambient humidity degree Lower than 70%
Human comfort degree 85-95%





Professional Screen
From the visual sense the screen structure of 4D cinema is a cylinder circular-screen stereoscopic image. The screen is an arc form semi-center of a circle,not a plane (flat screen). The aspect ratio of the screen is 16:9, and it can widely expand the scope of movement for 3D objects and horizon, get rid of the constraint of plane sight and make the movie space resemble as the real space. It can generate many mode of motion such as crossing and surrounding. That's how it makes the feeling of space-time's changing.(It's different from the "flat four-dimensional video" - which limits not only the audience's visual angle, but also the movement direction of the objects.)



Stereo-glasses
For viewers to enjoy stereoscopic motion picture, we exclusively design and manufacture cylinder polarized glasses (the "stereo glasses")for watching stereoscopic motion picture. It makes different movie images from viewer's left eye and right eye, so that the image reflected in the human brain is a 3D image, thereby to create an immersed scene of the three-dimensional visual space.



Computer Control System
To make sure that the above elements are achieved a computer is needed to control all the function. The computer is the core of the 4D cinema, all softwares and programs need to make sure that every function takes place are integrated into the computer,The movie has to be programed according to the computer and then the computer set the exact time when to execute such as projection of sound, produce all special effects e.t.c.

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 8

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 9

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 10



Congratulations! Our 9D cinema in Nicaragua was reported in local TV Channel, and newspaper!



High Definition 5D Movies

We have specialized film production department to develop new movies for 4D cinema. Firstly, we provide 80 dynamic movies for you. After the shipment, we will update 2-3 5D dynamic movies per month during warranty period for free.



Our Services

After sales service:

1.Installation

A.Send your technicians to China to learn installation and testing.

B.We will send you diagram, instructions, pictures and videos to show it.

C.Send our technician to your location to complete the installation.

2.Warranty We offer you one full year factory warranty. During this period we will offer you online maintenance for free, and supply you for free the damaged key parts excluding projection screen and the lamp of projectors induced by non-human factors.
3.7D Movie We have our professional team working on the 7D movie, normally we can update 2-3 new movie every month to our customers during the period of warranty.
4.Design We have our professional designer, can supply and design the ticket and room decoration for you. Help you to do advertisements attracting more people and win the market.

Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater 11







Movie system suppliers vr Motion Cinema Equipment 4d 5d 6d 7d 9d cinema theater
